4B Braime Belt Clamp
4B Braime BC2 4B Braime Belt Clamp

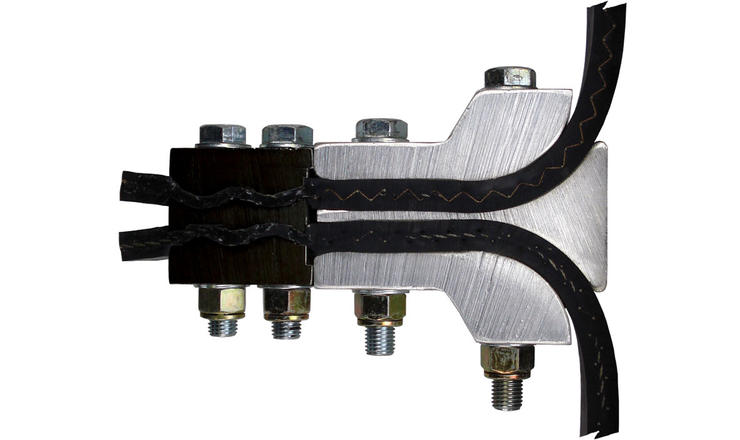

The Braime Clamp (BC) series of heavy duty belt splices securely fastens belting on larger bucket elevators.
Designed from three pieces of extruded aluminium including a centre wedge section to minimize belt wear.
Description
Additional information
| Brand |
|---|
UZYSKAJ CENĘ
Aby otrzymać propozycję, wyślij swoją aplikację na adres info@dystrybutor-przemyslowy.pl i określ wymagane stanowiska oraz dane firmy.
Specification
| Braime Clamp | Type | Belt Strength | Weight | Bolts |
| (kN/m max.) | (kgs/m) | |||
| BC1* | 1400 | 31.6 | M16 | |
| BC2 | 1600 | 56.5 | M16 | |
| BC3 | 2000 | 71 | M16 | |
| BC4 | 2500 | 96 | M16 | |
