STEEL WEB Belt
4B Braime SW 1250 STEEL WEB Belt

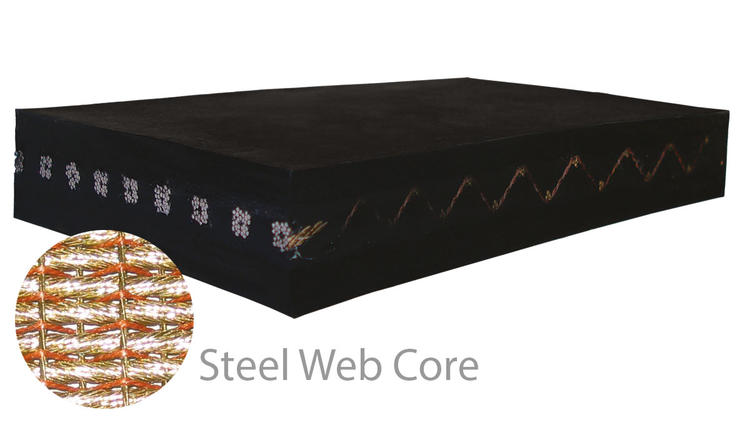

4B’s STEEL WEB belt is a rubber elevator belt with a special steel cord core. The cords provide low elongation with high elasticity in the length, and cross rigidity in the width. The built-in elasticity allows running over slightly crowned pulleys which greatly improves belt tracking. The rigid weft cords act as a barrier to ripping and tearing which increases the holding ability for the bucket bolts. This produces a good cross rigid belt resulting in excellent straight tracking characteristics. In contrast, most conventional steel cable belts lack elasticity and consequently have to run over truly flat, cylindrical pulleys which increases the risk of belts off tracking.
Description
Additional information
| Brand |
|---|
UZYSKAJ CENĘ
Aby otrzymać propozycję, wyślij swoją aplikację na adres info@dystrybutor-przemyslowy.pl i określ wymagane stanowiska oraz dane firmy.
Specification
| Belt type | Strength | Covers | Belt Thickness | Minimum Pulley Dia. | Approximate Weight | |
| SWB | (N/mm) | (mm) | (mm) | (mm) | (kg/sqm) | |
| SW 800 | 800 | 3+3 | 12.0 | 500 | 18.0 | |
| SW 1000 | 1,000 | 3+3 | 12.0 | 500 | 18.7 | |
| SW 1250 | 1,250 | 4+4 | 13.0 | 630 | 21.0 | |
| SW 1400 | 1,400 | 4+4 | 15.0 | 630 | 24.5 | |
| SW 1600 | 1,600 | 4+4 | 15.0 | 630 | 25.0 | |
| SW 1800 | 1,800 | 4+4 | 15.0 | 630 | 25.5 | |
| SW 2000 | 2,000 | 4+4 | 15.0 | 800 | 26.0 | |
| SW 2500* | 2,500 | 5+5 | 18.0 | 800 | 32.5 | |
