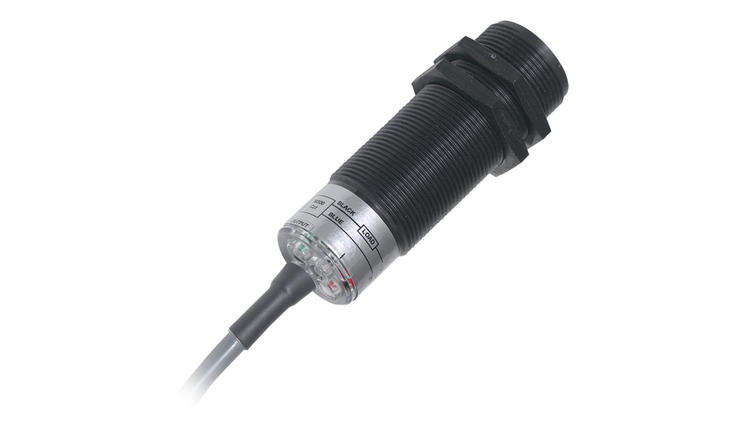

P300 – 30mm Inductive Sensor
4B Braime P300 – 30mm Inductive Sensor
Detects the presence or absence of materials. Is used for monitoring the speed of machinery via a speed module or PLC.
Description
Additional information
| Brand |
|---|
UZYSKAJ CENĘ
Aby otrzymać propozycję, wyślij swoją aplikację na adres info@dystrybutor-przemyslowy.pl i określ wymagane stanowiska oraz dane firmy.
Specification
| | ||||
| Model | P3001V10AI | P3002V10AI | P3001V34AI | |
| Power Supply | 24-240 VAC/VDC | 24-240 VAC/VDC | 10-30 VDC | |
| Output | Normally closed N/C | Normally open N/O | Either N/C or N/O | |
| Number of wires | 2 | 2 | 4 | |
| Voltage drop | 8V max | 8V max | Nil | |
| Detection range | 12 mm | 12 mm | 12 mm | |
| Maximum detection frequency | 6000 PPM / 100 Hz | 6000 PPM / 100 Hz | 12000 PPM / 200 Hz | |
| Maximum current | 200 mA | 200 mA | 100 mA | |
| Operating temperature range | -15°C to +50°C | -15°C to +50°C | -15°C to +50°C | |
| Certificates and approvals | ATEX and IECEx Zone 20 | ATEX and IECEx Zone 20 | ATEX and IECEx Zone 20 | |
| Protection | IP65 | IP65 | IP65 |
