4B Braime ATEX/IECEx Touchswitch™
The Touchswitch is an electro-mechanical limit switch with no moving parts, which detects tracking and misalignment problems on bucket elevators and conveyors. When a belt misaligns or a pulley moves over and contacts the sensor, the built in solid-state electronic circuitry detects the lateral force of the belt or pulley and activates a voltage free solid state relay output. This output signal is used to immediately alarm and ultimately shutdown the machine.
The face of the sensor is made from hardened and annealed stainless steel, not soft brass or aluminium, so wear life is longer when a belt contacts it. The sensor is not affected by dust or material build up and will still work when completely covered by material. An external test wheel allows for quick and simple sensor/system testing. The sensors are usually installed in pairs on opposite sides of the machine. The sensors can be connected directly to a PLC input, or for greater safety, to a central independent monitoring system, such as Watchdog Super Elite, IE-Node or the T500 Hotbus system.

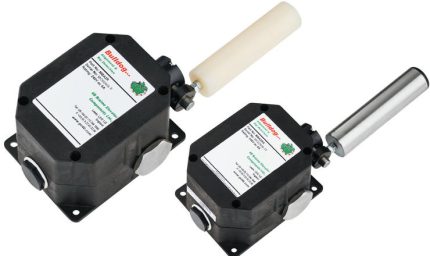

4B Braime Bulldog
The Bulldog alignment and rip detection switch is an electro-mechanical system designed to detect dangerous misalignment of the conveyor and also detection of belt tear damage. The switch will detect horizontal misalignment of belts when contact is made with the roller, the roller arm will be forced to pivot by the belt activating a switch at 20º to trigger an alarm, and 35º to trigger a shut down procedure of the conveyor. The sensors are usually installed in pairs on opposite sides of the belt.
A steel flexible wire is set below the running conveyor belt approx 20-30mm attached by a rare earth magnet at each end. If the belt is ripped or damaged the wire is pulled away releasing the magnet connection which in turn will activate a switch.
4B Braime CSA Touchswitch™
The Touchswitch is an electro-mechanical limit switch with no moving parts, which detects tracking and misalignment problems on bucket elevators and conveyors. When a belt misaligns or a pulley moves over and contacts the sensor, the built in solid-state electronic circuitry detects the lateral force of the belt or pulley and activates a voltage free solid state relay output. This output signal is used to immediately alarm and ultimately shutdown the machine.
The face of the sensor is made from hardened and annealed stainless steel, not soft brass or aluminium, so wear life is longer when a belt contacts it. The sensor is not affected by dust or material build up and will still work when completely covered by material. An external test wheel allows for quick and simple sensor/system testing. The sensors are usually installed in pairs on opposite sides of the machine. The sensors can be connected directly to a PLC input, or for greater safety, to a central independent monitoring system, such as Watchdog Super Elite, IE-Node or the T500 Hotbus system.
4B Braime WDA Motion Alignment Sensor
Non-contacting extended range magnetic proximity sensor, not affected by dust or material build up, used to detect moving ferrous material up to 100mm away from the sensor. The WDA sensor can be used on bucket elevators to measure speed and alignment by sensing either the metal elevator buckets, or the ferrous bolts attached to plastic buckets. A more specialized use for the WDA switch is as a broken/slack chain detector on drag chain conveyors, or as a non-contact speed switch for screw conveyors. The sensor is used in conjunction with a PLC or with 4B's Watchdog™ Elite or A400 Elite control units. Two output signals are provided: one signal is a pulse output, representing each bucket detected: the second signal is a continuous output when moving buckets are detected.
