Rotech Shaft Encoder – Aluminium
4B Braime Rotech Shaft Encoder – Aluminium

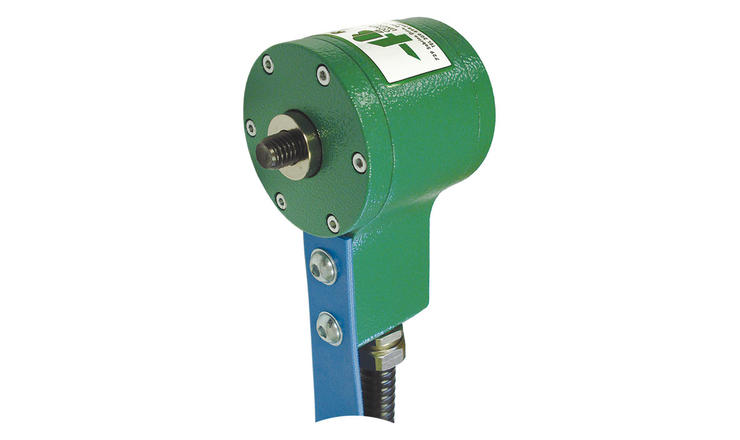

The 4B heavy duty aluminium Rotech rotary shaft encoder is used primarily for protecting equipment and personnel from dangerous underspeed/belt slip conditions in extreme environments. Other applications include accurate speed control, direction of rotation detection, gate position indication and counting the number of revolutions of the shaft.
An inductive sensing device in the body of the encoder detects a steel rotor. On slow speed or accurate position control, a photo diode detects the slots on a steel disk. One pulse is created for each rotor or slot so the unit can be connected directly to a PLC/computer or 4B control module.
The shaft to be monitored is drilled and taped to take the 1/2 in. UNC Rotech Bolt. The unit is secured to the shaft with this bolt and is able to move with the shaft. No guards are required as the rotating components are encased inside the housing of the encoder. No brackets are required as the encoder couples directly to the end of the shaft and floats with the shaft.
