T400N Elite
4B Braime T400N Elite
Unique low cost alarm/indicator panel for use with any 4B NTC-type temperature sensors. ADB810, WDB70, and WDB810 series sensors are recommended.

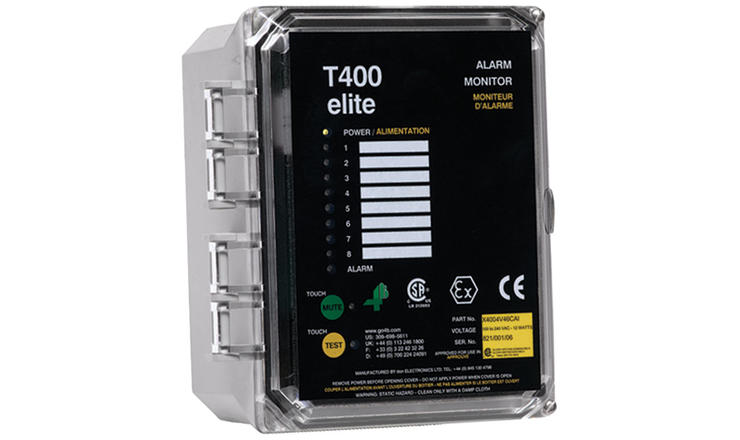

The T400N ELITE is able to accept signals from up to 8 NTC sensors (zones), which are separated into two groups of 4 zones. Each group of sensors is able to cause alarm and shutdown of individual machine when hazardous conditions are detected. There is a total of 2 Alarm and 2 Stop relays. The control unit is housed in a self contained wall mounting enclosure. A test push button on the lid of the control unit provides for full system verification. Alarm and status LEDs provide means of quick location of the alarm condition, and voltage free relay contacts provide separate alarm and shutdown control. An alarm mute push button is provided on the lid of the control unit and additional connections are provided for an external alarm mute functionality. A rotary switch is used to select the temperature alarm value.
Description
Additional information
| Brand |
|---|
UZYSKAJ CENĘ
Aby otrzymać propozycję, wyślij swoją aplikację na adres info@dystrybutor-przemyslowy.pl i określ wymagane stanowiska oraz dane firmy.
Specification
| T4004NV4CAI | T4004NV46CAI | ||
| Input Supply Voltage | 24 VDC (T4004NV4CAI) | 120 to 240 VAC or 24 VDC (T4004NV46CAI) | |
| Alarm Relay Contacts | Zone 1 - 1 Pole Normally Open - 8 A @ 250 VAC | Zone 1 - 1 Pole Normally Open - 8 A @ 250 VAC | |
| Zone 2 - 1 Pole Normally Open - 8 A @ 250 VAC | Zone 2 - 1 Pole Normally Open - 8 A @ 250 VAC | ||
| Stop Relay Contacts | Zone 1 - 1 Pole Normally Open - 8 A @ 250 VAC | Zone 1 - 1 Pole Normally Open - 8 A @ 250 VAC | |
| Zone 2 - 1 Pole Normally Open - 8 A @ 250 VAC | Zone 2 - 1 Pole Normally Open - 8 A @ 250 VAC | ||
| Sensor Inputs | Up To 8 NTC Thermistors | Up To 8 NTC Thermistors | |
| Sensor Supply | 24 VDC - 100 mA Maximum | 24 VDC - 100 mA Maximum | |
| Terminals | Power: 4 mm^2 - 14 AWG Maximum | Power: 4 mm^2 - 14 AWG Maximum | |
| Signals: 2.5 mm^2 - 16 AWG Maximum | Signals: 2.5 mm^2 - 16 AWG Maximum | ||
| Dimensions (H x W x D) | 9.7 x 7.4 x 4 (inches) / 246 x 188 x 102 (mm) | 9.7 x 7.4 x 4 (inches) / 246 x 188 x 102 (mm) | |
| Fixing Centres (H x W) | 8.75 x 4 (inches) / 222 x 102 (mm) | 8.75 x 4 (inches) / 222 x 102 (mm) | |
| Cable Entry | 2 Holes x 25mm Dia | 2 Holes x 25mm Dia | |
| Weight | 3 lbs / 1.3 Kg | 3 lbs / 1.3 Kg | |
| LED Status Indicators | Green LED - Power | Green LED - Power | |
| Green LED - Hot Bearing #1 through #8 | Green LED - Hot Bearing #1 through #8 | ||
| Red LED - Alarm | Red LED - Alarm | ||
| Push Buttons | Mute | Mute | |
| Test | Test | ||
| WARNING | WARNING |
