4B Braime A400 Elite Trackswitch
The A400 Elite Trackswitch belt misalignment monitor uses 4B WDA or BAP magnetic proximity sensors to monitor the alignment of the belt in bucket elevators. Each control unit incorporates two independent monitoring circuits for early detection of belt misalignment on one or two bucket elevators. The 4B magnetic reluctance sensors operate in pairs to detect the position of steel bolt heads or steel buckets as they pass through the sensor's adjustable magnetic field. Nuisance / false alarms are tuned out by setting a tolerance window on each sensor which allows for normal belt travel. Status LEDs on the control unit indicate the alignment condition of the belts on the elevators, while internal relay contacts provide alarm and automatic shutdown of the elevator when hazardous misalignment conditions are detected.
4B Braime Analog Expansion Board IE-Node
The Industrial Ethernet Node (IE-NODE) is a remote monitoring interface designed to provide sensor data to PLC’s or other automation and control systems.
Both units can be expanded to 16 sensor inputs with the installation of optional expansion boards.
The IE-NODE operates by reading its sensor inputs and sending processed data when requested by another system (e.g. PLC). The units are equipped with an RJ45 Ethernet socket and supports PROFINET, EtherNet/IP and Modbus TCP/IP protocols for easy integration with Siemens, Allen-Bradley Rockwell, Modicon and other PLC’s or automation devices.
The IE-NODE’s network configurator software provides a visual view of all devices on the network. It allows for easy identification of each unit on the network and allows for network settings to be changed as needed.

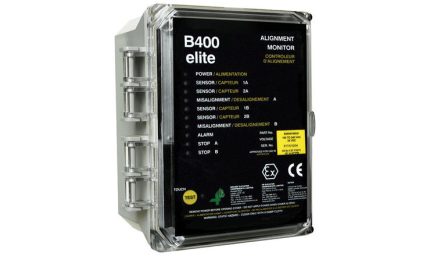

4B Braime B400 Elite Beltswitch
The B400 Elite Beltswitch belt misalignment monitor uses 4B Touchswitch sensors to monitor belt alignment in bucket elevators and conveyors. Each control unit incorporates two independent monitoring circuits for early detection of belt misalignment on one or two bucket elevators / conveyors. The 4B Touchswitch is an electro-mechanical limit switch with no moving parts. When a belt misaligns or a pulley moves over and contacts the sensor, the built in solid-state electronic circuitry detects the lateral force of the belt or pulley and activates a voltage free relay contact. Status LEDs on the control unit indicate the alignment condition of the belt, while internal relay contacts provide alarm and automatic shutdown of the elevator when hazardous misalignment conditions are detected.
4B Braime IE-NODE 1 IE-Node
The Industrial Ethernet Node (IE-NODE) is a remote monitoring interface designed to provide sensor data to PLC’s or other automation and control systems.
Both units can be expanded to 16 sensor inputs with the installation of optional expansion boards.
The IE-NODE operates by reading its sensor inputs and sending processed data when requested by another system (e.g. PLC). The units are equipped with an RJ45 Ethernet socket and supports PROFINET, EtherNet/IP and Modbus TCP/IP protocols for easy integration with Siemens, Allen-Bradley Rockwell, Modicon and other PLC’s or automation devices.
The IE-NODE’s network configurator software provides a visual view of all devices on the network. It allows for easy identification of each unit on the network and allows for network settings to be changed as needed.
4B Braime IE-NODE 2 IE-Node
The Industrial Ethernet Node (IE-NODE) is a remote monitoring interface designed to provide sensor data to PLC’s or other automation and control systems.
Both units can be expanded to 16 sensor inputs with the installation of optional expansion boards.
The IE-NODE operates by reading its sensor inputs and sending processed data when requested by another system (e.g. PLC). The units are equipped with an RJ45 Ethernet socket and supports PROFINET, EtherNet/IP and Modbus TCP/IP protocols for easy integration with Siemens, Allen-Bradley Rockwell, Modicon and other PLC’s or automation devices.
The IE-NODE’s network configurator software provides a visual view of all devices on the network. It allows for easy identification of each unit on the network and allows for network settings to be changed as needed.
4B Braime NTC Expansion Board IE-Node
The Industrial Ethernet Node (IE-NODE) is a remote monitoring interface designed to provide sensor data to PLC’s or other automation and control systems.
Both units can be expanded to 16 sensor inputs with the installation of optional expansion boards.
The IE-NODE operates by reading its sensor inputs and sending processed data when requested by another system (e.g. PLC). The units are equipped with an RJ45 Ethernet socket and supports PROFINET, EtherNet/IP and Modbus TCP/IP protocols for easy integration with Siemens, Allen-Bradley Rockwell, Modicon and other PLC’s or automation devices.
The IE-NODE’s network configurator software provides a visual view of all devices on the network. It allows for easy identification of each unit on the network and allows for network settings to be changed as needed.

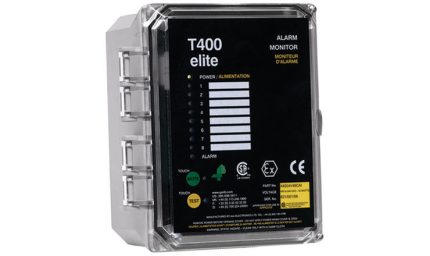

4B Braime T400 Elite (PTC Version)
Low cost alarm/indicator controller for use with PTC temperature sensors.
The T400 ELITE is a microprocessor controlled unit which works in conjunction with PTC temperature sensors to monitor up to 48 bearings and can cause alarm and shutdown of the machine when alarm conditions are detected. The control unit is housed in a self contained wall mounting enclosure. A test push button on the lid of the control unit provides for full system verification. Alarm and status LEDs provide quick location of the alarm condition, and voltage free relay contacts provide separate alarm and shutdown control. An alarm mute push button is provided on the lid of the control unit and additional connections are provided for an external alarm mute functionality.
4B Braime T400N Elite
Unique low cost alarm/indicator panel for use with any 4B NTC-type temperature sensors. ADB810, WDB70, and WDB810 series sensors are recommended.
The T400N ELITE is able to accept signals from up to 8 NTC sensors (zones), which are separated into two groups of 4 zones. Each group of sensors is able to cause alarm and shutdown of individual machine when hazardous conditions are detected. There is a total of 2 Alarm and 2 Stop relays. The control unit is housed in a self contained wall mounting enclosure. A test push button on the lid of the control unit provides for full system verification. Alarm and status LEDs provide means of quick location of the alarm condition, and voltage free relay contacts provide separate alarm and shutdown control. An alarm mute push button is provided on the lid of the control unit and additional connections are provided for an external alarm mute functionality. A rotary switch is used to select the temperature alarm value.

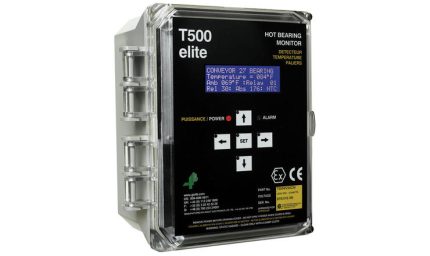

4B Braime T500 Elite Hotbus™
The T500 Elite Hotbus™ is a serial communications system designed to monitor up to 256 sensors for combined belt alignment, belt speed, continuous bearing temperature, pulley alignment, level indication (bin / silo) and plug conditions on bucket elevators and conveyors. With automatic machine shutdown capability and PLC / PC compatibility, this advanced microprocessor based system offers low cost installation, versatility and easy system expansion. Logging and trending software is also available for historic data analysis and preventative or predictive machine maintenance.
HazardMon.com® is a secure cloud based hazard monitoring solution providing status notifications and data logging for bucket elevators and conveyors. Live system status, graphs and historical data can be viewed on any web-enabled device (smartphone, tablet PC, desktop or laptop computer). Emails can be sent to notify users whenever a change in the system's health is detected. An automated maintenance feature allows site operators to verify that all sensors on the system are operational and working correctly.

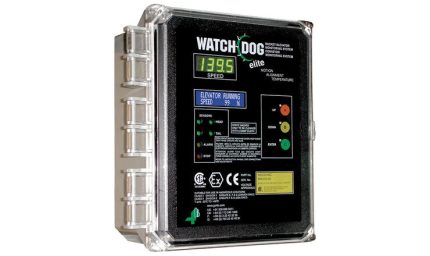

4B Braime Watchdog™ Elite (WDC3)
This product is obsolete. Please use the WDC4 Super Elite for all new projects: http://www.go4b.co.uk/watchdog
The Watchdog™ Elite is a microprocessor controlled unit with combined belt speed, belt alignment, bearing temperature, pulley alignment and plugged condition monitoring for bucket elevators and conveyors. An LCD screen displays machine status messages (available in four different languages) and a super-bright LED display shows belt speed. Calibration and set-up parameters are accessed via a password and front panel touch buttons.

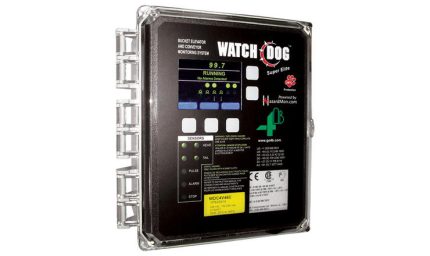

4B Braime Watchdog™ Super Elite (WDC4)
The Watchdog Super Elite (WDC4) is easy to install and simple to set-up. The system processes signals from sensors for belt misalignment, belt speed & slip, continuous bearing temperature, pulley misalignment and plug conditions for bucket elevators or belt conveyors. When an alarm is detected it will sound an alarm and provide shutdown control of the elevator/conveyor and feeding system.
A 3.5” LCD screen displays the entire system status at a glance. Password protected controller settings can be set up either directly on the LCD screen, or by a PC application and transferred to the WDC4 via an SD card.
The Watchdog Super Elite can be connected directly to a PLC using the Modbus TCP/IP protocol, or integrated into HazardMon.com®. This secure cloud based solution provides live system status, graphs and historical data that is viewable on any web-enabled device (smart phone, tablet, desktop PC).

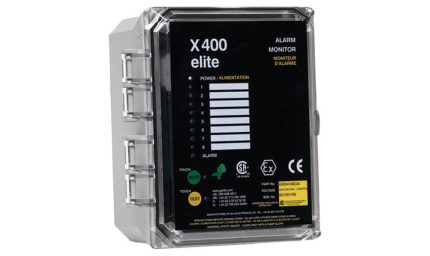

4B Braime X400 Elite Alarmswitch
The X400 Elite is a microprocessor controlled low cost alarm indicator panel for use with level indicators, hazard controls and limit switch sensors. The X400 accepts signals from different sources in up to 8 zones, and is able to cause alarm and shutdown of the machine when an alarm condition has been detected. Alarm and status LEDs on the lid of the X400 provide quick location of alarm conditions. Alarm muting can be performed at the panel or by an optional remote push button to silence external alarms. If the system is muted, it will automatically reactivate when a new alarm is triggered. Testing can also be activated at the panel, providing full system verification.
