Wskaźniki poziomu
4B Braime Auto-Set
The Auto-Set series RF capacitance point level monitors are used for detecting high, intermediate, or low levels of liquids, powders and free flowing granular solids stored in tanks, bins, silos or other containers.
The Auto-Set series incorporates simple push-button calibration with microprocessor enable/disable switch for total protection of stored values. Once the Auto-Set is calibrated for the application it never has to be re-calibrated. Data is stored in non-volatile memory so it is not affected by power loss. A four digit LED display shows set values for uncovered, covered and trip settings, allowing simple set-up and adjustment. A set of voltage-free changeover relay contacts are actuated when the level of the material in the container reaches the probe. The unit incorporates a unique power shield which automatically compensates for material build-up around the probe and on the sides of the container, preventing false indication. The solid state electronics are housed in a weatherproof, flame retardant, glass-reinforced nylon enclosure. The Auto-Set is top or side mountable with 316 stainless steel probes lengths up to 10m long.
4B Braime Auto-Set™ Flush Probe
The Auto-Set flush probe is a low profile RF capacitance plug switch level monitor designed for tight fitting applications to detect levels of liquids, powders and free flowing granular solids in conveyors, bucket elevators and surge hoppers.
The Auto-Set flush probe incorporates simple push-button calibration with microprocessor enable/disable switch for total protection of stored values. Once the Auto-Set is calibrated for the application it never has to be re-calibrated. Data is stored in non-volatile memory so it is not affected by power loss. A four digit LED display shows set values for uncovered, covered and trip settings, allowing simple set-up and adjustment. A set of voltage-free changeover relay contacts are actuated when the level of the material in the container reaches the probe. The unit incorporates a unique power shield which automatically compensates for material build-up around the probe and on the sides of the container, preventing false indication. The solid state electronics are housed in a weatherproof, flame retardant, glass-reinforced nylon enclosure. The Auto-Set is top or side mountable, and the probe inserts 2.5 to 5cm into a tank or spouting, has no moving parts and is made from 6.3mm 316 stainless steel plate. It can be used with container walls up to 2.5cm thick.

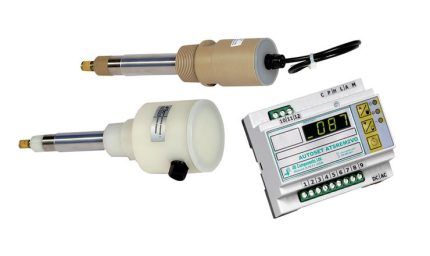

4B Braime Auto-Set™ Remote
The Auto-Set Remote series RF capacitance point level monitors are designed for high temperature (250°C) or vibration applications to detect high, intermediate, or low levels of liquids, powders and free flowing granular solids stored in tanks, bins, silos or other containers.
The Auto-Set Remote has a din rail mounted remote control unit with simple push-button calibration. The remote control unit connects to the transducer, which is mounted in a suitable enclosure close to the probe. For applications below 120° C or without any vibration, the transducer can be mounted within the polypropylene probe housing. Once the Auto-Set Remote is calibrated for the application it never has to be re-calibrated. Data is stored in non-volatile memory so it is not affected by power loss. A four digit LED display shows set values for uncovered, covered and trip settings, allowing simple set-up and adjustment. A set of voltage-free changeover relay contacts are actuated when the level of the material in the container reaches the probe. The unit incorporates a unique power shield which automatically compensates for material build-up around the probe and on the sides of the container, preventing false indication. The Auto-Set Remote is top or side mountable with stainless steel probes lengths up to 10m long, and can be used with container walls up to 7.5cm thick.
4B Braime RG1 Level Sensor
The RG1 Level Sensor has been designed to indicate the presence or absence of bulk materials such as grains, pellets, chemicals, wood chips and other powders.
The detection of material is achieved by a rotating paddle. If material impedes the rotation of the paddle, the motor topples of its axis and triggers an alarm.
The RG1 has a variety of compatible paddles which offer the ability to detect a wide range of products.

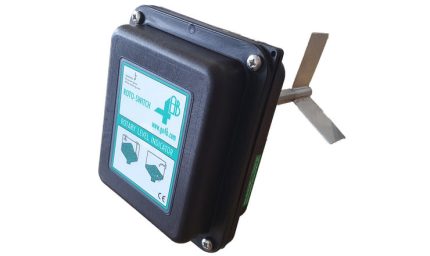

4B Braime RLI
The RLI rotary paddle switch is designed to detect high and low levels of bulk granular solids in bins, tanks, silos, and as blockage detectors in spouts. The detection of material is achieved by a rotating paddle. If material impedes the rotation of the paddle, the motor topples of its axis and triggers a contact. The power supply to the motor is cut and the contact signals that a critical level has been reached, which will cause the motor for any inlet or outlet to close down or start up. When the level of the material reaches normal levels again, the motor returns to its initial position and restarts.

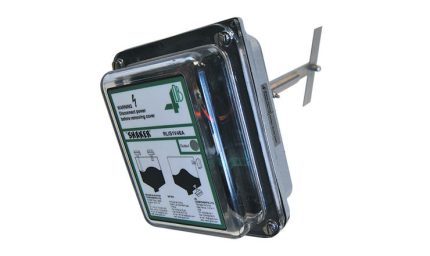

4B Braime RLI Shaker
The RLI “SHAKER” rotary paddle switch is used to detect high and low levels of bulk granular solids in bins, tanks and silos. It can also be used to detect plug conditions in spouts, where long life and fail-safe detection is required.
Utilizing a unique stepper motor drive, the RLI “SHAKER” rotates clockwise, then counter-clockwise and then shakes to shed any excess material build up. If the paddle rotation is impeded at any time by the bulk material then the electronic circuit provides a signal for level indication or control. The RLI “SHAKER” uses fewer mechanical parts compared with standard rotary level indicators. No gearbox or clutch is required as the stepper motor drive is directly coupled to the output shaft and is practically indestructible and cannot be damaged by forced or backwards rotation. Also, an adjustable torque control allows one unit to cover many different densities of material, and provides easy on site calibration without having to change paddles.
4B Braime Roto-Safe™
The Roto-Safe rotary paddle switch is designed to detect high and low levels of bulk granular solids in bins, tanks, silos, and as blockage detectors in spouts where failsafe detection is required, or for dust hazard areas.
The detection of material is achieved by a rotating paddle. If material impedes the rotation of the paddle, the motor topples of its axis and triggers a contact. The power supply to the motor is cut and the contact signals that a critical level has been reached, which will cause the motor for any inlet or outlet to close down or start up. When the level of the material reaches normal levels again, the motor returns to its initial position and restarts. In the case of a power failure, the Roto-Safe has a fail safe relay that will signal the control room or sound an audible alarm indicating that the unit is not working. Through the control circuit, this alarm can stop any motor filling or emptying the silo. The Roto-Safe also has a built in rotation detection circuit. The output operates from 0 to 20 seconds after the motor has stalled. This feature can be tested by using the magnetic test feature on the outside of the case.
